Specifications

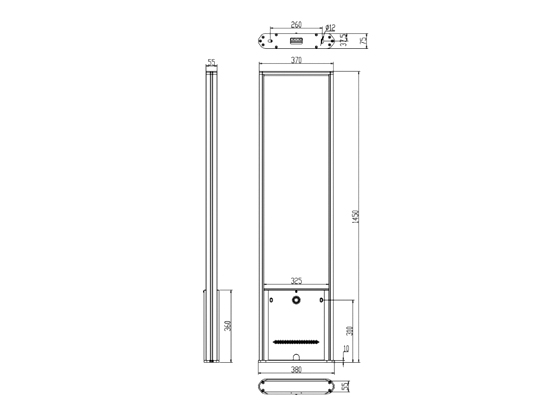

Size	1450 × 370 × 75 mm (per piece)
Weight	10 KG (per piece)
Frequency	902MHz～928MHz
Protocol	ISO 18000-6C
Working Temperature	-20℃～60℃
Storage temperature	-30℃～70℃
Environmental humidit	5%～95%RH, no condensation
Power supply	AC 220V±10% 47～63 Hz
Power consumption	about 45W
Communication Interface	RS-232(DB9)、RJ45
Recommended width per channel access	0.8～1.5m (up to 2.2m)

Access Control Components (N channels)
1	Access control rack N+1 pcs (N channels)
2	9dBic narrow beam antennas 4*N pcs
3	Control board and power supply module ≥N/2 pcs
4	Read/Write Module N pcs
5	RS232 serial port N pcs
6	Ethernet port N pcs
7	Switch>N port
8	RF feeder 4*N pcs
9	Infrared radiation 2*N sets
10	Infrared connector 2*N sets

BRA-01CR

BRA-01L

BRA-01SR

BRA-02CR

BRA-02SR

BRA-02D

BRA-07

BRA-08

BRA-09

BRA-10

BRA-15

BRA-16

BRA-20

BRA-21

BRA-31

BRA-49

BRA-50

BOWEI BRA-01CR 9dBic Outdoor RFID Antenna for Access & Logistics

9dBic Outdoor RFID Antenna

BOWEI BRA-01SR 8.5dBic Circular Polarized RFID Antenna for Logistics

BOWEI BRA-02CR 6dBic Outdoor RFID Antenna for Harsh Environments

6dBic Outdoor RFID Antenna

BOWEI BRA-02D 5.5dBic Indoor RFID Antenna for Access Control & Retail

Handheld Reader Antenna

8dBic Narrow Beam Antenna

Near-field RFID Antenna

6dBi Narrow Beam Antenna

BOWEI BRA-15 8dBic Outdoor RFID Antenna for Logistics & Warehousing

BOWEI BRA-16 10dBic Narrow Beam RFID Antenna for Vehicle Management

BOWEI BRA-20 3dBic Handheld RFID Reader Antenna for Portable Use

Underground RFID Antenna

8.5dBic Narrow beam Antenna

12dBi Linear Antenna

8dBic Indoor Antenna

BRD-01LI

BRD-02LI

BRD-DC01

BRD-DC06

BOWEI BRD-01LI 9dBic UHF RFID Reader for Asset Management

UHF RFID Integrated Reader

BOWEI BRD-DC01 Desktop RFID Reader/Writer for Library Use

Desktop Reader/Writer

BRD-2204

BRD-2208

BRD-2216

BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading

BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use

16-port RFID Fixed Reader

BRC-04F

BRC-04G

BRC-04G Pro

BRC-04L

BRD-05A

BRC-05A Pro

BRD-17

BOWEI BRC-04F Standing Gate RFID Reader for Access

Acrylic gate reader

BOWEI BRC-04G Acrylic Gate RFID Reader for Directional Control

BOWEI BRC-04L Gate RFID Reader for Attendance & Logistics

Top-mounted Gate Readers

Top-mounted Gate Reader

BOWEI BRD-17 Smart RFID Portal for Retail, Warehousing

BRD-C03

BH-01

BH-01 Pro

BRD-C02

BOWEI BRD-C03 Portable RFID Reader for Retail & Medical

BOWEI BH-01 RFID Handheld Reader for Logistics, Assets

RFID Handheld Reader

Handheld Reader android

BRT-01

BRT-02

BRT-03

BRT-04

BRT-05

BRT-06

BRT-23

BRT-25

BRT-26

BRT-34
