BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use
BRD-2208 is a high-performance UHF 8-port fixed RFID reader. It supports ISO18000-6C protocol, and the frequency band covers CHN: 920MHz～925MHz, FCC: 902MHz～928MHz and ETSI: 865MHz～ 868MHz. The output power supports 10dBm ~ 33dBm optional. It has the characteristics of long reading distance, fast speed, super multi-tag reading ability, strong anti-interference ability, high protection performance and convenient installation and use.
HomeProductsFixed RFID Readers
Overview Specification Applications Recommend
8-Port Fixed UHF RFID Reader for Multi-Tag Use
BOWEI BRD-2208 8-Port Fixed UHF RFID Reader
8-Port Fixed UHF RFID Reader for Multi-Tag Use
BOWEI BRD-2208 8-Port Fixed UHF RFID Reader
8-Port Fixed UHF RFID Reader for Multi-Tag Use
BOWEI BRD-2208 8-Port Fixed UHF RFID Reader
8-Port Fixed UHF RFID Reader for Multi-Tag Use

BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use

8-port RFID Fixed Reader

Impinj E710 platform;

Support ISO18000-6C protocol;

RJ-45 and RS-232;

Independent mold opening, all-aluminum die-casting, efficient heat dissipation;

Support RSSI, can perceive the signal strength;

Support antenna detection function.

Get Quote
Do you need to view the product specification?

You can click to view more about product information

Explore

Highlight
Specifications
  • Physical parameters

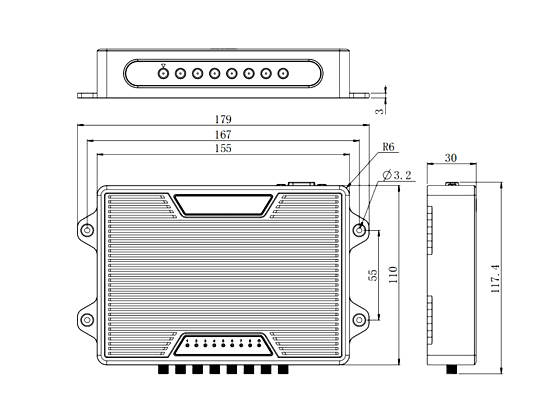

    Size 179mm×117mm×31mm
    Weight 0.85kg
    IP Class IP53
  • working environment
    Operating temperature -20 - +60°C
    Storage temperature -40 - +85°C
    Humidity 10%-95% RH non-condensing
  • Main function 
    Protocol EPC Class 1 Gen 2 / ISO18000-6C

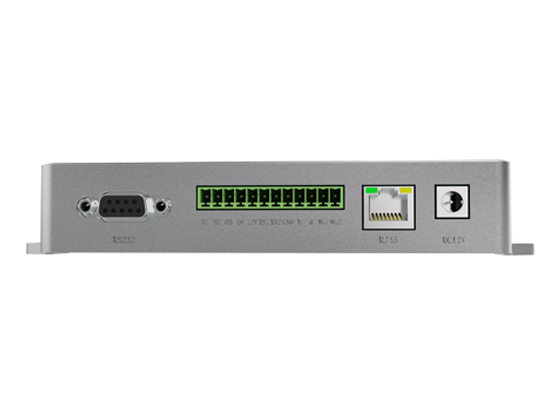

    Communication Interface RJ-45、RS-232
    Operating mode Fixed frequency/frequency hopping optional
    I/O interface GPO: 4 output ports (O1/O2/O3/O4), low level by default;
    GPIN: 2 input ports (IN1/IN2), high level by default, active low level;
    Function Support intensive reading and writing
    Support antenna detection function
    Support online upgrade
    Support tag data filtering
    Support antenna work instructions
    Support RSSI: Perceivable signal strength
  • Performance parameters 
    Frequency CHN:920MHz～925MHz
    FCC:902MHz～928MHz
    ETSI:865MHz～868MHz
    RF output power (port) 33dBm±1dB（MAX）
    Output power regulation 1 dB
    Channel occupied bandwidth ＜200KHz
    Band stability ≤±10ppm
    Reading distance Reading distance: 0m ~ 20m (related to factors such as transmission power, antenna type, tag type and application environment)
    Write distance 0m～10m(related to factors such as transmit power, antenna type, tag type and application environment)
    Read speed >300times/second
    Network interface communication rate 10M/100M adaptive
  • Communication Interface
    RS232 interface Baud rate 115200bps (default)
    Ethernet interface 10M/100ME thernet interface
    RF interface SMA-Female
  • Power parameters
    Equipment power supply DC12V5A（60W）
    Working power consumption 25W(output power 33dBm)
Applications
RFID Apparel & Footwear retail solution
Apparel & Footwear
RFID Apparel & Footwear retail solution
RFID shoe and apparel retail solutions to reshape the new retail experience. Using RFID technology, it is easy to realize the automatic tracking and management of shoes and clothing products, accurate inventory, rapid inventory, and effective prevention of theft. The program makes the store operation more smooth, and the customer shopping more convenient, and is the best choice for the intelligent transformation of the shoe and clothing retail industry.

View More
RFID intelligent book management
Library & Archives
RFID intelligent book management
RFID intelligent book management solution uses RFID technology to give each book a unique identity to achieve automatic identification and tracking. Readers borrow and return more convenient, book inventory and search efficiency doubled. At the same time, the intelligent analysis system helps the library to accurately grasp the collection situation and optimize the allocation of resources. Make the library management more efficient and intelligent, and create a more comfortable and convenient reading environment for readers.

View More
RFID Warehous and logistics management
Warehousing & Logistics
RFID Warehous and logistics management
RFID logistics warehousing management solution through the integration of RFID technology, to achieve the whole chain of intelligent management of goods from warehousing to warehousing. RFID tag accurate identification, real-time tracking of goods location and status, reduce manual errors, improve work efficiency. Automated inventory and inventory monitoring to ensure inventory accuracy and reduce operating costs. At the same time, data-driven decision-making helps enterprises accurately optimize warehousing layout and operational strategies.

View More
RFID store cash register
Apparel & Footwear
RFID store cash register
RFID store cashier solution, through intelligent RFID tags to achieve rapid identification of goods, improve cashier efficiency, reduce customer waiting time. Real-time inventory synchronization, accurate management of commodity flow. At the same time, data analysis helps precision marketing and promotes store performance.

View More
