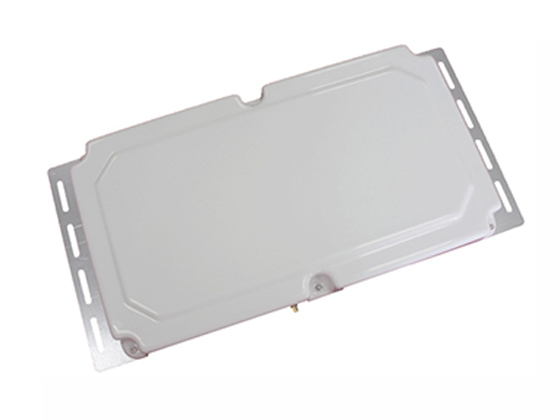

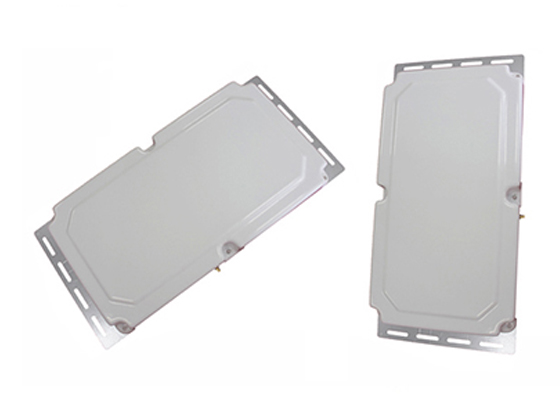

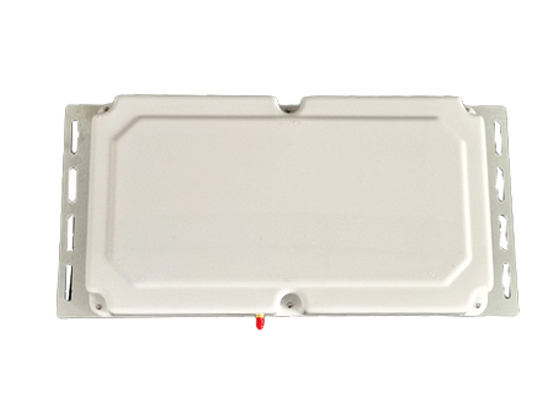

BRA-16 Narrow Beam RFID Antenna for Vehicle Management

CN EN

Home
Products

RFID Antenna Series Integrated RFID Readers Fixed RFID Readers UHF Gate Readers Handheld RFID Readers RFID Tags Smart Device RFID Software and
Customization

RFID Antenna Series

Product Model

BRA-01CR
BOWEI BRA-01CR 9dBic Outdoor RFID Antenna for Access & Logistics

BRA-01L
9dBic Outdoor RFID Antenna

BRA-01SR
BOWEI BRA-01SR 8.5dBic Circular Polarized RFID Antenna for Logistics

BRA-02CR
BOWEI BRA-02CR 6dBic Outdoor RFID Antenna for Harsh Environments

BRA-02SR
6dBic Outdoor RFID Antenna

BRA-02D
BOWEI BRA-02D 5.5dBic Indoor RFID Antenna for Access Control & Retail

BRA-07
Handheld Reader Antenna

BRA-08
8dBic Narrow Beam Antenna

BRA-09
Near-field RFID Antenna

BRA-10
6dBi Narrow Beam Antenna

BRA-15
BOWEI BRA-15 8dBic Outdoor RFID Antenna for Logistics & Warehousing

BRA-16
BOWEI BRA-16 10dBic Narrow Beam RFID Antenna for Vehicle Management

BRA-20
BOWEI BRA-20 3dBic Handheld RFID Reader Antenna for Portable Use

BRA-21
Underground RFID Antenna

BRA-31
8.5dBic Narrow beam Antenna

BRA-49
12dBi Linear Antenna

BRA-50
8dBic Indoor Antenna

BOWEI BRA-01CR 9dBic Outdoor RFID Antenna for Access & Logistics

BRA-01CR is a general antenna for UHF RFID applications with high gain and low VSWR. pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.it is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

9dBic Outdoor RFID Antenna

BRA-01L Antenna is a general antenna for UHF RFID applications with high gain and low VSWR.pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

BOWEI BRA-01SR 8.5dBic Circular Polarized RFID Antenna for Logistics

BRA-01SR Antenna isis a general antenna for UHF RFID applications with high gain , low VSWR, broad axial ratio and etc.circular polarized UHF RFID antenna can be widely used, side feed design, pleasing appearance with small size, sophisticated technique and easy to install.

BOWEI BRA-02CR 6dBic Outdoor RFID Antenna for Harsh Environments

BRA-02CR Antenna is is a general antenna for UHF RFID applications with high gain and low VSWR.pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

6dBic Outdoor RFID Antenna

BRA-02SR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

BOWEI BRA-02D 5.5dBic Indoor RFID Antenna for Access Control & Retail

BRA-02D 5.5dBic Indoor RFID Antenna can be easily used in UHF band RFID applications such as access control, warehousing, logistics, and retail.

Handheld Reader Antenna

BRA-07 3dBic Handheld RFID Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.

8dBic Narrow Beam Antenna

BRA-08 8dBic Narrow Beam UHF RFID Antenna can be conveniently used in UHF band access control, vehicle management, etc.

Near-field RFID Antenna

BRA-09 Near-field RFID Antenna is of convenient application in jewelry, retail POS, libraries, healthcare and other UHF RFID applications.

6dBi Narrow Beam Antenna

BRA-10 6dBi Narrow Beam Antenna is of convenient application in retail, conference management, personnel management, RFID sports timing, luggage management, warehousing, logistics, asset management and UHF RFID application fields.

BOWEI BRA-15 8dBic Outdoor RFID Antenna for Logistics & Warehousing

BRA-15 8dBic Outdoor RFID Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

BOWEI BRA-16 10dBic Narrow Beam RFID Antenna for Vehicle Management

BRA-16 10dBic Narrow Beam RFID Antenna easily applied to situations UHF band access control, vehicle management and other uses.

BOWEI BRA-20 3dBic Handheld RFID Reader Antenna for Portable Use

BRA-20 UHF 3dBic Handheld Reader RFID Antenna is Especially applicable to UHF RFID handheld reader, miniaturized terminals or various outdoor applications.

Underground RFID Antenna

BRA-21 13dBic Buried RFID Antenna can be conveniently applied in UHF frequency band access control, vehicle management, asset management and other applications.

8.5dBic Narrow beam Antenna

BRA-31 8.5dBic Narrow-beam Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

12dBi Linear Antenna

BRA-49 12dBi Linear Polarization RFID Antenna is suitable for UHF RFID applications, such as entrance guard, warehouse management, logistics and vehicle management.

8dBic Indoor Antenna

BRA-50 8dBic Circular Polarization RFID Antenna is retail & customer interaction, conference & people tracking, race timing, baggage handling, and logistic & supply chain asset management.

Integrated RFID Readers

Product Model

BRD-01LI
BOWEI BRD-01LI 9dBic UHF RFID Reader for Asset Management

BRD-02LI
UHF RFID Integrated Reader

BRD-DC01
BOWEI BRD-DC01 Desktop RFID Reader/Writer for Library Use

BRD-DC06
Desktop Reader/Writer

BOWEI BRD-01LI 9dBic UHF RFID Reader for Asset Management

BRD-01LI UHF RFID Integrated Reader is a UHF RFID reader with integrated 9dBic antenna. It can be widely used in many fields such as warehouse management, personnel management, asset management, commercial retail and automatic vehicle identification.

UHF RFID Integrated Reader

BRD-02LI UHF RFID Integrated Reader is a UHF RFID reader with integrated 4dBi antenna. It can be widely used in many fields such as warehouse management, personnel management, asset management, commercial retail and automatic vehicle identification.

BOWEI BRD-DC01 Desktop RFID Reader/Writer for Library Use

BRD-DC01 RFID librarian workstation is widely used in library management, stores, supermarkets, clothing stores, archives management, logistics management, production automation management and other RFID system application fields.

Desktop Reader/Writer

BRD-DC06 desktop reader is a professional reader specially designed and developed for label information input. It has excellent protection performance and read/write performance. It can realize automatic group write and single write. The appearance of the product is simple and generous, small and beautiful, light weight and easy to carry.

Fixed RFID Readers

Product Model

BRD-2204
BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading

BRD-2208
BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use

BRD-2216
16-port RFID Fixed Reader

BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading

BRD-2204 4-port RFID Fixed Reader is a high-performance UHF 4-port fixed RFID reader. It supports ISO18000-6C protocol, and the frequency band covers CHN: 920MHz~925MHz, FCC: 902MHz~928MHz and ETSI: 865MHz~868MHz. The output power supports 10dBm~33dBm optional. It has the characteristics of long reading distance, fast speed, super multi-tag reading ability, strong anti-interference ability, high protection performance and convenient installation and use.

BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use

BRD-2208 is a high-performance UHF 8-port fixed RFID reader. It supports ISO18000-6C protocol, and the frequency band covers CHN: 920MHz～925MHz, FCC: 902MHz～928MHz and ETSI: 865MHz～ 868MHz. The output power supports 10dBm ~ 33dBm optional. It has the characteristics of long reading distance, fast speed, super multi-tag reading ability, strong anti-interference ability, high protection performance and convenient installation and use.

16-port RFID Fixed Reader

BRD-2216 is a high-performance UHF 16-port fixed RFID reader. It has the characteristics of long reading distance, fast speed, super multi-tag reading ability, strong anti-interference ability, high protection performance and convenient installation and use.

UHF Gate Readers

Product Model

BRC-04F
BOWEI BRC-04F Standing Gate RFID Reader for Access

BRC-04G
Acrylic gate reader

BRC-04G Pro
BOWEI BRC-04G Acrylic Gate RFID Reader for Directional Control

BRC-04L
BOWEI BRC-04L Gate RFID Reader for Attendance & Logistics

BRD-05A
Top-mounted Gate Readers

BRC-05A Pro
Top-mounted Gate Reader

BRD-17
BOWEI BRD-17 Smart RFID Portal for Retail, Warehousing

BOWEI BRC-04F Standing Gate RFID Reader for Access

BRC-04F UHF RFID Gate Reader supports high speed read tag performance and good read/write area control ability, provides standard RS232 or RJ45 interface, easy to connect the software platform. The product is especially suitable for all kinds of logistics, warehousing, books, files, personnel attendance management.

Acrylic gate reader

BRC-04G is a high performance acrylic UHF access control system. Supported by multi-beam antenna and positioning algorithms, this system can determine the direction of tag movement, accurately distinguish between in-field and out-of-field tags.

BOWEI BRC-04G Acrylic Gate RFID Reader for Directional Control

BRC-04G Pro is a high performance acrylic UHF access control system. Supported by multi-beam antenna and positioning algorithms, this system can determine the direction of tag movement, accurately distinguish between in-field and out-of-field tags.

BOWEI BRC-04L Gate RFID Reader for Attendance & Logistics

BRC-04L UHF RFID gate reader supports EPC C1G2 (ISO18000-6C) protocol. It supports multi-channel control functions, integrates high-gain antenna groups, high-speed readers. The product is particularly suitable for various types of logistics, warehousing, books, files, and personnel attendance management.

Top-mounted Gate Readers

BRC-05A is a high-performance top-mounted uhf rfid gate reader. This product complies with ISO18000-6C protocol. It can be widely used in clothing retailers, books and archives management, personnel access management, fixed assets, intelligent warehousing management and other fields.

Top-mounted Gate Reader

BRC-05A Pro has the advantages of good anti-leakage reading and misreading performance, non-inductive trigger, long identification distance, strong multi-label recognition ability. It can be widely used in clothing retailers, books and archives management, personnel access management, fixed assets, intelligent warehousing management and other fields.

BOWEI BRD-17 Smart RFID Portal for Retail, Warehousing

BRD-17 portal is a high-performance UHF top-mounted smart device. It complies with ISO18000-6C protocol. BRD-17 can be widely used in clothing stores, supermarket retail, book file management, personnel access management, fixed asset management, intelligent warehousing management.

Handheld RFID Readers

Product Model

BRD-C03
BOWEI BRD-C03 Portable RFID Reader for Retail & Medical

BH-01
BOWEI BH-01 RFID Handheld Reader for Logistics, Assets

BH-01 Pro
RFID Handheld Reader

BRD-C02
Handheld Reader android

BOWEI BRD-C03 Portable RFID Reader for Retail & Medical

BRD-C03 RFID Portable Reader is a powerful portable reader, long life function, can ensure stable UHF working capacity, and has high gain, remote antenna recognition and other characteristics. It can be used in clothing retail, warehouse management, asset management, smart medical and other application scenarios.

BOWEI BH-01 RFID Handheld Reader for Logistics, Assets

BH-01 is a multifunctional UHF RFID handheld reading and writing device .It can be widely used in many fields such as library and archive management, logistics management, warehousing management, asset management, and commercial retail.

RFID Handheld Reader

BH-01 Pro is a multifunctional UHF RFID handheld reading and writing It can be widely used in many fields such as library and archive management, logistics management, warehousing management, asset management, and commercial retail.

Handheld Reader android

BRD-C02 RFID Handheld Reader is suitable for retail industry, library management, archives management, power industry, asset management, vehicle management, warehousing and logistics, manufacturing, medical industry, etc

RFID Tags

Product Model

BRT-01
ABS RFID Tag

BRT-02
Ceramic blank card

BRT-03
PVC blank card

BRT-04
Ceramic Anti-Metal RFID Tag

BRT-05
Ceramic Anti-Metal RFID Tag

BRT-06
Ceramic Anti-Metal RFID Tag

BRT-23
Library / Archives RFID Tag

BRT-25
BOWEI BRT-25 RFID Wristband Tag for Long-Distance Reading

BRT-26
Underground RFID Tag

BRT-34
High Temperature RFID Tag

BRT-6535
Flexible Anti- Metal Tag

BRT-7015
Laundry RFID Tag

ABS RFID Tag

BRT-01 Anti-metal ABS RFID Tag is designed specifically for the complex environment FCC band tag, Especially suitable for all kinds of metal environment, easy to use in the management of metal assets and equipment, gun management, medical device management, logistics and etc.

Ceramic blank card

BRT-02 Ceramic blank card tag is designed specifically for the vehicle identification, with large reading distance, high sensitivity, excellent physical characteristics. Easy to use in vehicle management and etc.

PVC blank card

BRT-03 PVC Blank Card RFID Tag is independently developed UHF lengthened type tag in order to solve the problems in relatively strong car membrane. It is of high identification rate, good encryption, and high temperature resistance. Can solve most problems in car membrane.

Ceramic Anti-Metal RFID Tag

BRT-04 ceramic anti-metal tag is advantages of large reading distance, high sensitivity, small size, easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, medical equipment management, logistics and etc.

Ceramic Anti-Metal RFID Tag

BRT-05 ceramic anti-metal tag is advantages of large reading distance, high sensitivity, small size, easy to install. It is especially suitable for a variety of metal environments, easy to use in metal asset equipment management, gun control, medical equipment management, logistics and etc.

Ceramic Anti-Metal RFID Tag

BRT-06 ceramic anti-metal tag is dedicatedly designed to complex metal environments. The super small-size tag provides special choice for the applications of high requirements on tag size and performance. It is recommended to be used on metal tools, small devices and other item managements.

Library / Archives RFID Tag

BRT-23 library / archives label has a good performance of high reading rate, good reading performance when they are densely stacked, excellent anti-magnetic. Especially suitable for file management, examination paper tracking and management, library management, etc.

BOWEI BRT-25 RFID Wristband Tag for Long-Distance Reading

BRT-25 Wristband Tag is designed specifically for UHF wristband. It addresses the performance weakness of pervious UHF tag affected by human body, and achieves long-distance reading on human body.

Underground RFID Tag

BRT-26 is dedicated to the goods positioning. It has a good performance of far reading distance, compressive and impact resistance, high mechanical strength and easy to install, especially suitable for a variety of tobacco tray positioning, grain management, conveniently used in all the RFID positioning management applications.

High Temperature RFID Tag

BRT-34 it has the characteristics of long reading distance, high sensitivity and easy installation. It is suitable for various metal environments, especially high temperature environments, and can be conveniently applied to various metal and high temperature environments.

Flexible Anti- Metal Tag

BRT -6535 flexible anti-metal label is designed for application on industrial logistics, healthcare, item-level tracking and automotive applications, it is a programmable rfid stickers and applicable for on metal surfaces.

Laundry RFID Tag

BRT-7015 laundry tag has more than 200 industrial washing lifes, It can be conveniently used in industrial washing, linen leasing, hospital linen management, railway linen management, garment factory, laundry, chemical raw materials and needs. High temperature wear resistance, corrosion resistance and other harsh environments.

Smart Device

Product Model

BRG-02C
Intelligent File Cabinet

BRG-211A
Intelligent medical cabinet

BRG-256
BOWEI BRG-256 RFID Intelligent Book Cabinet for Libraries

BRG-BM01
RFID Self-service kiosk

BRG-C10
RFID Packing count cart

Intelligent File Cabinet

BRG-02C Intelligent File Cabinet supports EPC C1 G2 (ISO18000-6C) protocol, applies UHF RFID technology, You can choose to log in by card swiping, face recognition, etc., and cooperate with surveillance cameras and voice prompts to make file management safer, smarter, and more efficient.

Intelligent medical cabinet

BRG-211 RFID Intelligent medical cabinet is applies UHF RFID technology to number each type and even each consumable or medication, and automatically scans and identifies item information. It can be expanded to make medical consumable management safer, smarter, and more efficient.

BOWEI BRG-256 RFID Intelligent Book Cabinet for Libraries

The BRG-256 RFID Intelligent book cabinet is a high-performance miniature mobile library device that can be placed indoors or outdoors. Suitable for libraries scenes such as halls, community cultural activity points, transportation stations and cultural and leisure places.

RFID Self-service kiosk

BRG-BM01 RFID Self-service kiosk is a high-performance self-service book borrowing and has the functions of self-service borrowing, returning, renewing. It has super multi-tag reading performance and good reading and writing area control capabilities, and is seamless with the library RFID system.

RFID Packing count cart

BRD-C10 is an RFID smart device developed for the footwear and apparel industry. It uses UHF RFID radio frequency identification technology . The inventory information is presented instantly, and the goods information label can also be printed instantly, which is convenient for the operator to seal the box and affix labels and marks in time after packing.

RFID Software and
Customization

Product Model

RFID Antenna Customized Design

RFID Tag Customized Design

RFID Antenna Customized Design

According to customer requirements, Shenzhen Bowei provides antenna customized service for all kinds of research and development institutions, communication testing institutions, major colleges and universities, enterprises and etc.

RFID Tag Customized Design

According to customer requirements,customized service for all kinds of research and development institutions, communication testing institutions,major colleges and universities, enterprises and etc
Applications

Apparel & Footwear Library & Archives Intelligent Transportation Warehousing & Logistics Tool Management

Apparel & Footwear

RFID Apparel & Footwear retail solution RFID store operation solution RFID store cash register

View More

RFID Apparel & Footwear retail solution

RFID shoe and apparel retail solutions to reshape the new retail experience. Using RFID technology, it is easy to realize the automatic tracking and management of shoes and clothing products, accurate inventory, rapid inventory, and effective prevention of theft. The program makes the store operation more smooth, and the customer shopping more convenient, and is the best choice for the intelligent transformation of the shoe and clothing retail industry.

RFID store operation solution

RFID technology comprehensively optimizes store operations: automated shipping and receiving to reduce errors; Accurate and efficient shopping guidance services to enhance customer satisfaction; Fast and accurate product inventory, real-time inventory updates; Intelligent warehouse management maximizes space utilization. Comprehensively improve store operation efficiency and customer experience.

RFID store cash register

RFID store cashier solution, through intelligent RFID tags to achieve rapid identification of goods, improve cashier efficiency, reduce customer waiting time. Real-time inventory synchronization, accurate management of commodity flow. At the same time, data analysis helps precision marketing and promotes store performance.

Library & Archives

RFID intelligent book management

View More

RFID intelligent book management

RFID intelligent book management solution uses RFID technology to give each book a unique identity to achieve automatic identification and tracking. Readers borrow and return more convenient, book inventory and search efficiency doubled. At the same time, the intelligent analysis system helps the library to accurately grasp the collection situation and optimize the allocation of resources. Make the library management more efficient and intelligent, and create a more comfortable and convenient reading environment for readers.

Intelligent Transportation

RFID Intelligent transportation management

View More

RFID Intelligent transportation management

RFID intelligent traffic management solution integrates automatic vehicle identification, monitoring and management. Vehicle RFID tags enable efficient identification and tracking, optimizing traffic flow and reducing congestion. At the same time, through the vehicle management system, the vehicle information is quickly entered, queried and updated to improve the efficiency of vehicle management. Combined with big data analysis, real-time grasp of road conditions and vehicle dynamics, to provide drivers with accurate navigation and optimal routes. Strengthen the supervision of traffic violations, ensure road safety, and build an intelligent and efficient traffic management system.

Warehousing & Logistics

RFID Warehous and logistics management

View More

RFID Warehous and logistics management

RFID logistics warehousing management solution through the integration of RFID technology, to achieve the whole chain of intelligent management of goods from warehousing to warehousing. RFID tag accurate identification, real-time tracking of goods location and status, reduce manual errors, improve work efficiency. Automated inventory and inventory monitoring to ensure inventory accuracy and reduce operating costs. At the same time, data-driven decision-making helps enterprises accurately optimize warehousing layout and operational strategies.

Tool Management

RFID intelligent tool management

View More

RFID intelligent tool management

RFID intelligent tool management solution by embedding RFID tags for each tool, to achieve rapid input and tracking of tool information. The scheme can automatically count inventory, reduce manual errors and improve management efficiency. At the same time, real-time monitoring of tool location and status to ensure timely tool return and maintenance, reduce the risk of loss and damage. RFID technology helps enterprises achieve intelligent and automated tool management, optimize resource allocation, and improve operational efficiency.
News

Industry Events Company News
Partners
Support

F & Q Download Video Center
About Us

about us contact

Performance Specifications
Frequency Range	860MHz～960MHz
VSWR	≤1.3:1
Gain	10 dBic

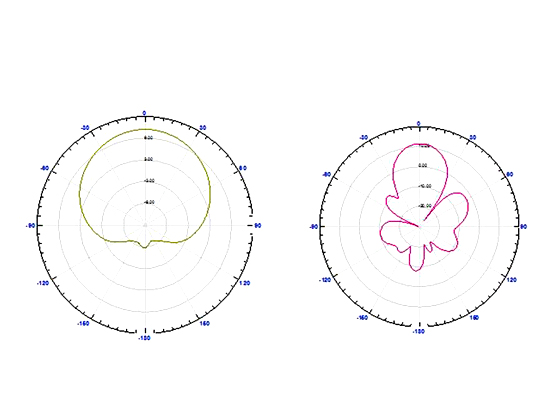

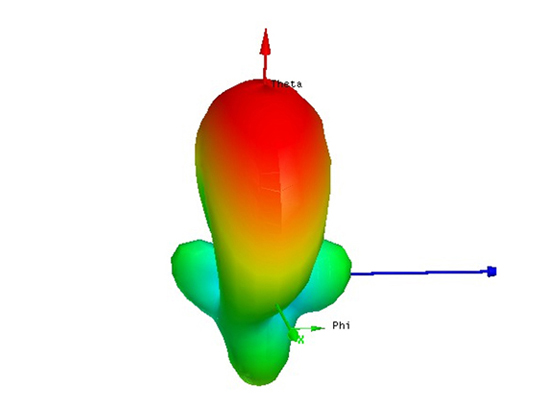

Beamwidth	70°× 45°
Polarization	Circular Polarization
Axial ratio	<3 dB
Relative humidity	5%～95%
Impedance	50±1Ω
Connector Type	SMA-50KFD Female

Mechanical Specifications
Size	460 mm×220 mm×35 mm
Weight	2.5kg
Material	Engineering Plastic ASA, Aluminums
Color	White
Operating Temperature	-40℃~+ 85℃
Storage Temperature	-40℃~+ 85℃

BRA-01CR

BRA-01L

BRA-01SR

BRA-02CR

BRA-02SR

BRA-02D

BRA-07

BRA-08

BRA-09

BRA-10

BRA-15

BRA-16

BRA-20

BRA-21

BRA-31

BRA-49

BRA-50

BOWEI BRA-01CR 9dBic Outdoor RFID Antenna for Access & Logistics

9dBic Outdoor RFID Antenna

BOWEI BRA-01SR 8.5dBic Circular Polarized RFID Antenna for Logistics

BOWEI BRA-02CR 6dBic Outdoor RFID Antenna for Harsh Environments

6dBic Outdoor RFID Antenna

BOWEI BRA-02D 5.5dBic Indoor RFID Antenna for Access Control & Retail

Handheld Reader Antenna

8dBic Narrow Beam Antenna

Near-field RFID Antenna

6dBi Narrow Beam Antenna

BOWEI BRA-15 8dBic Outdoor RFID Antenna for Logistics & Warehousing

BOWEI BRA-16 10dBic Narrow Beam RFID Antenna for Vehicle Management

BOWEI BRA-20 3dBic Handheld RFID Reader Antenna for Portable Use

Underground RFID Antenna

8.5dBic Narrow beam Antenna

12dBi Linear Antenna

8dBic Indoor Antenna

BRD-01LI

BRD-02LI

BRD-DC01

BRD-DC06

BOWEI BRD-01LI 9dBic UHF RFID Reader for Asset Management

UHF RFID Integrated Reader

BOWEI BRD-DC01 Desktop RFID Reader/Writer for Library Use

Desktop Reader/Writer

BRD-2204

BRD-2208

BRD-2216

BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading

BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use

16-port RFID Fixed Reader

BRC-04F

BRC-04G

BRC-04G Pro

BRC-04L

BRD-05A

BRC-05A Pro

BRD-17

BOWEI BRC-04F Standing Gate RFID Reader for Access

Acrylic gate reader

BOWEI BRC-04G Acrylic Gate RFID Reader for Directional Control

BOWEI BRC-04L Gate RFID Reader for Attendance & Logistics

Top-mounted Gate Readers

Top-mounted Gate Reader

BOWEI BRD-17 Smart RFID Portal for Retail, Warehousing

BRD-C03

BH-01

BH-01 Pro

BRD-C02

BOWEI BRD-C03 Portable RFID Reader for Retail & Medical

BOWEI BH-01 RFID Handheld Reader for Logistics, Assets

RFID Handheld Reader

Handheld Reader android

BRT-01

BRT-02

BRT-03

BRT-04

BRT-05

BRT-06

BRT-23

BRT-25

BRT-26

BRT-34
