BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading
BRD-2204 4-port RFID Fixed Reader is a high-performance UHF 4-port fixed RFID reader. It supports ISO18000-6C protocol, and the frequency band covers CHN: 920MHz~925MHz, FCC: 902MHz~928MHz and ETSI: 865MHz~868MHz. The output power supports 10dBm~33dBm optional. It has the characteristics of long reading distance, fast speed, super multi-tag reading ability, strong anti-interference ability, high protection performance and convenient installation and use.
HomeProductsFixed RFID Readers
Overview Specification Applications Recommend
4-Port Fixed UHF RFID Reader for Fast Reading

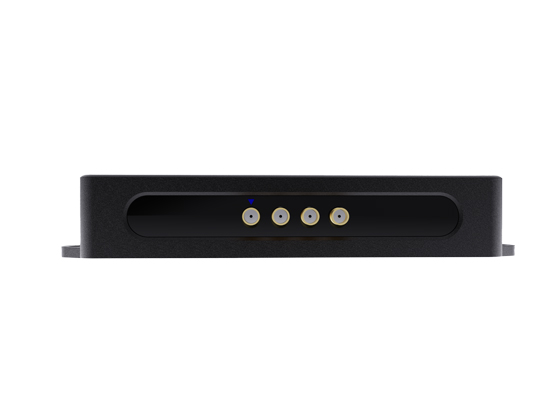

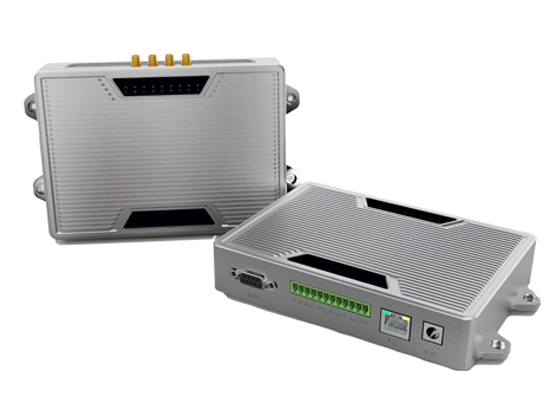

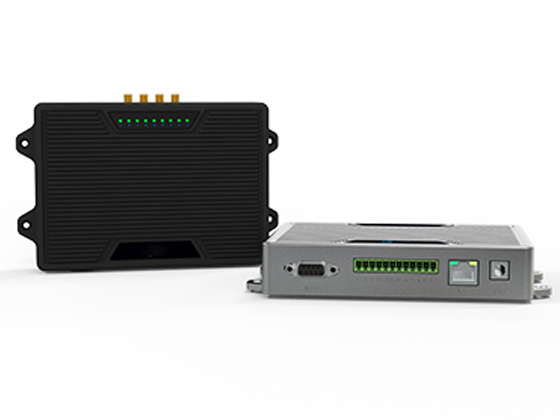

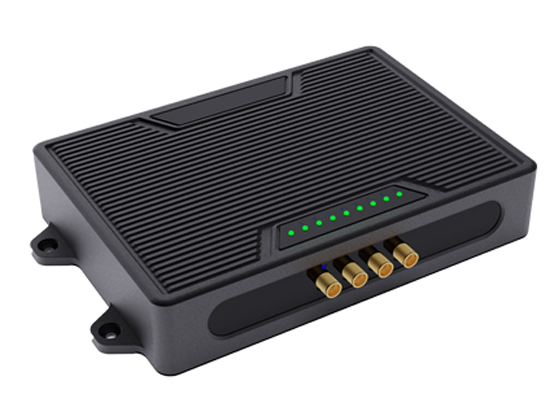

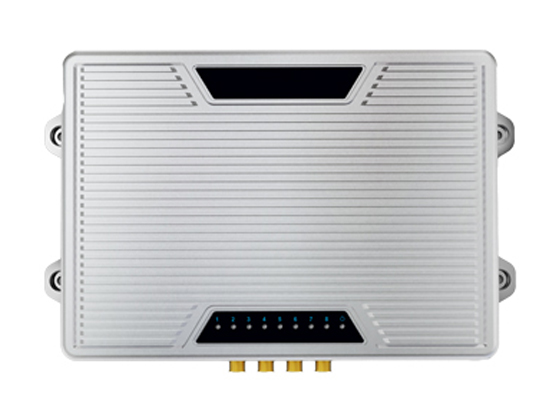

BOWEI BRD-2204 4-Port Fixed UHF RFID Reader
4-Port Fixed UHF RFID Reader for Fast Reading
BOWEI BRD-2204 4-Port Fixed UHF RFID Reader
4-Port Fixed UHF RFID Reader for Fast Reading
BOWEI BRD-2204 4-Port Fixed UHF RFID Reader

BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading

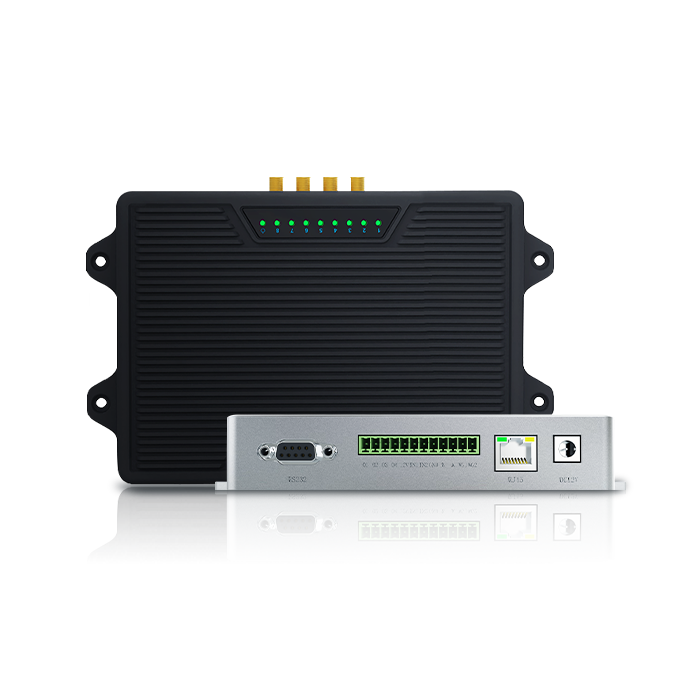

4-port RFID Fixed Reader

Impinj E710 platform;

Support ISO18000-6C protocol;

RJ-45 and RS-232;

Independent mold opening, all-aluminum die-casting, efficient heat dissipation;

Support RSSI, can perceive the signal strength;

Support antenna detection function;

Get Quote
Do you need to view the product specification?

You can click to view more about product information

Explore

Highlight
Specifications
  • Physical Parameters

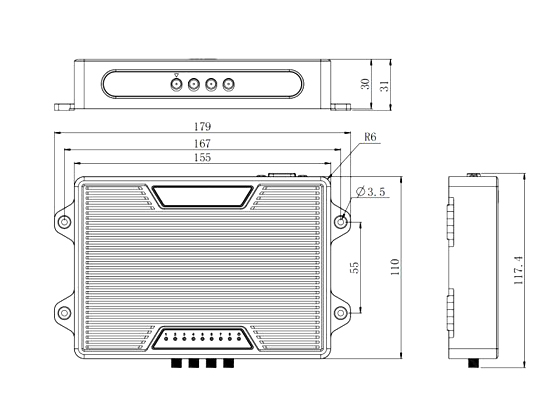

    Size 179mm×117mm×31mm
    Weight 0.85kg
    IP Class IP53
  • Working Environment
    Operating temperature -20 - +60°C
    Storage temperature -40 - +85°C
    Humidity 10%-95% RH non-condensing
  • Main Function
    Protocol Support all ISO18000-6C mandatory commands
    Communication interface RJ-45, RS-232
    Operating mode Fixed frequency/frequency hopping optional
    I/O interface GPIO: 4 output ports (O1/O2/O3/O4), default low level;
    2 input ports (IN1/IN2), default high level, active low level;
    One DC 12V/500mA output (12V) can be used as an external sensor power supply.
    Function Support intensive reading and writing
    Support antenna detection function
    Support online upgrade
    Support tag data filtering
    Support antenna work instructions
    Support RSSI: Perceivable signal strength
  • Performance Parameters
    Frequency GB: 920MHz~925MHz/840MHz~845MHz
    FCC: 902MHz~928MHz
    ETSI: 865MHz~868MHz
    RF output power (port) 33dBm±1dB (MAX)
    Output power regulation 1 dB
    Channel occupied bandwidth ＜200KHz
    Band stability ≤±10ppm
    Reading distance Reading distance: 0m ~ 20m (related to factors such as transmission power, antenna type, tag type and application environment)
    Write distance 0m～10m(related to factors such as transmit power, antenna type, tag type and application environment)
    Read speed >800times/second
    Network interface communication rate 10M/100M adaptive
  • Communication Interface
    RS232 interface Baud rate 115200bps (default)
    Ethernet interface 10M/100M Ethernet interface
    RF interface Four SMA antenna connectors
  • Power parameters
    Equipment power supply DC 12V（60W）
    Working power consumption 25W(output power 33dBm)
Applications
RFID intelligent book management
Library & Archives
RFID intelligent book management
RFID intelligent book management solution uses RFID technology to give each book a unique identity to achieve automatic identification and tracking. Readers borrow and return more convenient, book inventory and search efficiency doubled. At the same time, the intelligent analysis system helps the library to accurately grasp the collection situation and optimize the allocation of resources. Make the library management more efficient and intelligent, and create a more comfortable and convenient reading environment for readers.

View More
RFID intelligent tool management
Tool Management
RFID intelligent tool management
RFID intelligent tool management solution by embedding RFID tags for each tool, to achieve rapid input and tracking of tool information. The scheme can automatically count inventory, reduce manual errors and improve management efficiency. At the same time, real-time monitoring of tool location and status to ensure timely tool return and maintenance, reduce the risk of loss and damage. RFID technology helps enterprises achieve intelligent and automated tool management, optimize resource allocation, and improve operational efficiency.

View More
RFID Warehous and logistics management
Warehousing & Logistics
RFID Warehous and logistics management
RFID logistics warehousing management solution through the integration of RFID technology, to achieve the whole chain of intelligent management of goods from warehousing to warehousing. RFID tag accurate identification, real-time tracking of goods location and status, reduce manual errors, improve work efficiency. Automated inventory and inventory monitoring to ensure inventory accuracy and reduce operating costs. At the same time, data-driven decision-making helps enterprises accurately optimize warehousing layout and operational strategies.

View More
RFID store cash register
Apparel & Footwear
RFID store cash register
RFID store cashier solution, through intelligent RFID tags to achieve rapid identification of goods, improve cashier efficiency, reduce customer waiting time. Real-time inventory synchronization, accurate management of commodity flow. At the same time, data analysis helps precision marketing and promotes store performance.

View More
