Performance Features
Frequency range	920 - 925 MHz
Sensitivity	-17dBm (reading range reach 2m)
Chip	Alien H3
Protocol supported	ISO 18000-6C, EPC global C1Gen2
Function	Read / Write

Chip Features
E P C	96-EPC(can be extended to 496bits)
Chip memory	512 User Bits
T I D	64 bits
Access password	32 bits
Kill password	32 bits
Data retention	10 years
Write endurance	10,000 cycle

Mechanical Features

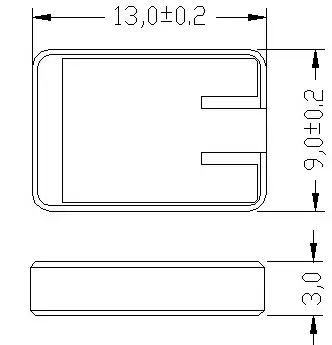

Size	13mm x 9mm x 3mm
Material of shell	Ceramic, Silver, 3M adhesive
Color	Black
Weight	1.5g
Installation method	3M adhesive
Protection class	IP67
Operating Temperature	-20℃ to +85℃

BRA-01CR

BRA-01L

BRA-01SR

BRA-02CR

BRA-02SR

BRA-02D

BRA-07

BRA-08

BRA-09

BRA-10

BRA-15

BRA-16

BRA-20

BRA-21

BRA-31

BRA-49

BRA-50

BOWEI BRA-01CR 9dBic Outdoor RFID Antenna for Access & Logistics

9dBic Outdoor RFID Antenna

BOWEI BRA-01SR 8.5dBic Circular Polarized RFID Antenna for Logistics

BOWEI BRA-02CR 6dBic Outdoor RFID Antenna for Harsh Environments

6dBic Outdoor RFID Antenna

BOWEI BRA-02D 5.5dBic Indoor RFID Antenna for Access Control & Retail

Handheld Reader Antenna

8dBic Narrow Beam Antenna

Near-field RFID Antenna

6dBi Narrow Beam Antenna

BOWEI BRA-15 8dBic Outdoor RFID Antenna for Logistics & Warehousing

BOWEI BRA-16 10dBic Narrow Beam RFID Antenna for Vehicle Management

BOWEI BRA-20 3dBic Handheld RFID Reader Antenna for Portable Use

Underground RFID Antenna

8.5dBic Narrow beam Antenna

12dBi Linear Antenna

8dBic Indoor Antenna

BRD-01LI

BRD-02LI

BRD-DC01

BRD-DC06

BOWEI BRD-01LI 9dBic UHF RFID Reader for Asset Management

UHF RFID Integrated Reader

BOWEI BRD-DC01 Desktop RFID Reader/Writer for Library Use

Desktop Reader/Writer

BRD-2204

BRD-2208

BRD-2216

BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading

BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use

16-port RFID Fixed Reader

BRC-04F

BRC-04G

BRC-04G Pro

BRC-04L

BRD-05A

BRC-05A Pro

BRD-17

BOWEI BRC-04F Standing Gate RFID Reader for Access

Acrylic gate reader

BOWEI BRC-04G Acrylic Gate RFID Reader for Directional Control

BOWEI BRC-04L Gate RFID Reader for Attendance & Logistics

Top-mounted Gate Readers

Top-mounted Gate Reader

BOWEI BRD-17 Smart RFID Portal for Retail, Warehousing

BRD-C03

BH-01

BH-01 Pro

BRD-C02

BOWEI BRD-C03 Portable RFID Reader for Retail & Medical

BOWEI BH-01 RFID Handheld Reader for Logistics, Assets

RFID Handheld Reader

Handheld Reader android

BRT-01

BRT-02

BRT-03

BRT-04

BRT-05

BRT-06

BRT-23

BRT-25

BRT-26

BRT-34
