Performance Specifications
Frequency Range	902MHz～928MHz
Maximum VSWR	≤1.3:1

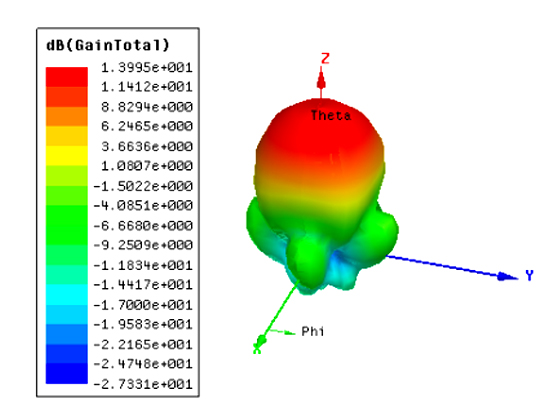

Gain	>13dBic
Beamwidth	35°x 35°
Polarization	Circular Polarization
Antenna Connection	TNC

Physical specifications

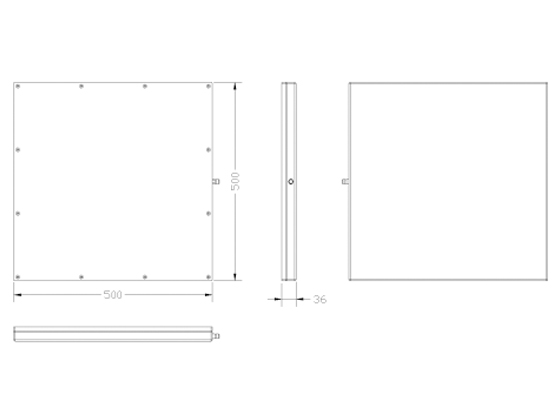

Size	500 mm×500 mm×36 mm
Weight	8.5kg
Material	Stainless steel、Aluminums
IP Level	IP67
Operational Temperature	-40℃~+ 85℃
Storage Temperature	-40℃~+ 85℃

BRA-01CR

BRA-01L

BRA-01SR

BRA-02CR

BRA-02SR

BRA-02D

BRA-07

BRA-08

BRA-09

BRA-10

BRA-15

BRA-16

BRA-20

BRA-21

BRA-31

BRA-49

BRA-50

BOWEI BRA-01CR 9dBic Outdoor RFID Antenna for Access & Logistics

9dBic Outdoor RFID Antenna

BOWEI BRA-01SR 8.5dBic Circular Polarized RFID Antenna for Logistics

BOWEI BRA-02CR 6dBic Outdoor RFID Antenna for Harsh Environments

6dBic Outdoor RFID Antenna

BOWEI BRA-02D 5.5dBic Indoor RFID Antenna for Access Control & Retail

Handheld Reader Antenna

8dBic Narrow Beam Antenna

Near-field RFID Antenna

6dBi Narrow Beam Antenna

BOWEI BRA-15 8dBic Outdoor RFID Antenna for Logistics & Warehousing

BOWEI BRA-16 10dBic Narrow Beam RFID Antenna for Vehicle Management

BOWEI BRA-20 3dBic Handheld RFID Reader Antenna for Portable Use

Underground RFID Antenna

8.5dBic Narrow beam Antenna

12dBi Linear Antenna

8dBic Indoor Antenna

BRD-01LI

BRD-02LI

BRD-DC01

BRD-DC06

BOWEI BRD-01LI 9dBic UHF RFID Reader for Asset Management

UHF RFID Integrated Reader

BOWEI BRD-DC01 Desktop RFID Reader/Writer for Library Use

Desktop Reader/Writer

BRD-2204

BRD-2208

BRD-2216

BOWEI BRD-2204 4-Port Fixed UHF RFID Reader for Fast Reading

BOWEI BRD-2208 8-Port Fixed UHF RFID Reader for Multi-Tag Use

16-port RFID Fixed Reader

BRC-04F

BRC-04G

BRC-04G Pro

BRC-04L

BRD-05A

BRC-05A Pro

BRD-17

BOWEI BRC-04F Standing Gate RFID Reader for Access

Acrylic gate reader

BOWEI BRC-04G Acrylic Gate RFID Reader for Directional Control

BOWEI BRC-04L Gate RFID Reader for Attendance & Logistics

Top-mounted Gate Readers

Top-mounted Gate Reader

BOWEI BRD-17 Smart RFID Portal for Retail, Warehousing

BRD-C03

BH-01

BH-01 Pro

BRD-C02

BOWEI BRD-C03 Portable RFID Reader for Retail & Medical

BOWEI BH-01 RFID Handheld Reader for Logistics, Assets

RFID Handheld Reader

Handheld Reader android

BRT-01

BRT-02

BRT-03

BRT-04

BRT-05

BRT-06

BRT-23

BRT-25

BRT-26

BRT-34
