Multiple login methods: You can choose multiple login methods such as finger vein, swipe card, and binocular live face recognition to manage door opening permissions;
Intelligent access: using ultra-high frequency RFID technology to automatically identify medical consumables or medication with RFID tags, and automatically take inventory after closing the door ;
Customized non-standard antenna: The cabinet layer is equipped with a specially designed RFID antenna, which can cover the entire cabinet and has no blind spots for identification ;
Real-time inventory function: It can realize 24-hour online inventory of consumables in the cabinet and monitor the quantity and location of consumables in the cabinet in real time;
Fast inventory count: Using ultra-high frequency RFID technology, the inventory count is fast, 300 for the entire cabinet p cs inventory time within 10 seconds ;
Powerful management function: the application, purchase, acceptance, collection, use and scrapping process of each consumable can be recorded and queried in the background;
15.6 -inch large touch screen: dynamically displays item inventory, usage and out-of-stock information in real time, realizing lean management of consumable and medication diapplication, procurement and replenishment ;
Easy to use: With glass door design, the inventory of consumables is intuitive, and the bottom pulley design makes it easy to move and use;

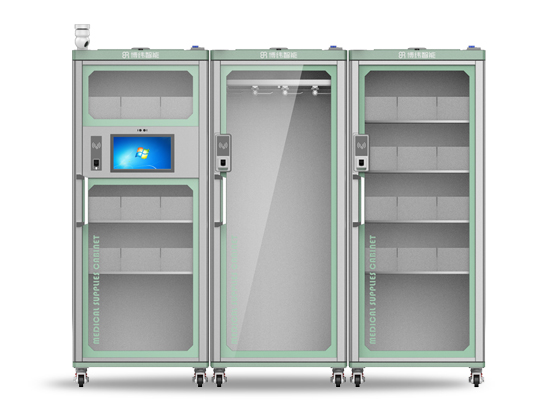

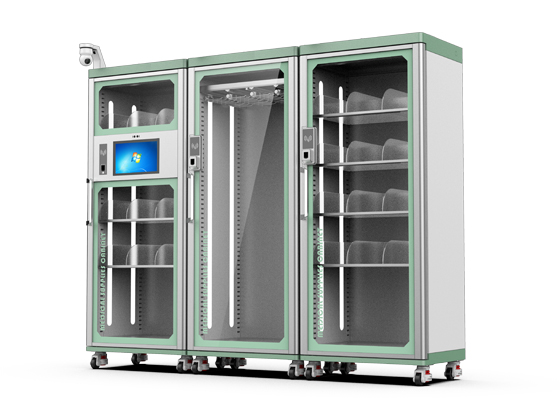

Free combination : The slave cabinets can be controlled and cascaded through the master cabinet.
You can click to view more about product information
Explore

| Performance characteristics | |
| Working frequency | 902MHz~928MHz |
| Standards compliant | ISO 18000-6C |
| Output Power | 8dbm-33dbm (adjustable) |
| Communication Interface | RJ45, WiFi |
| Authorization | Binocular face, finger vein , card swiping optional |
| Machine power consumption | About 80W |
| Power supply | 12V |
| operating system | Support Android / Windows |
| Inventory time | <10 seconds |
| Shielding performance | ≤5cm |
| Multi-label recognition | Multi-label anti-collision, more than 300 sheets |
| Android | |
| CPU processor | RK3288 quad core |
| Main frequency | 1.8GHz |
| display interface | VGA,HDMI |
| Screen size | 15.6 inches |
| resolution | 1920 * 1080 |
| Memory | 2G (4G optional) |
| harddisk | 16G (optional 8G/32G/64G) |
| USB | 4 way |
| COM port | 1 channel RS232 |
| Ethernet | 10/100 adaptive |
| WIFI/Bluetooth | support |
| 4G | Optional |
| physical properties | ||

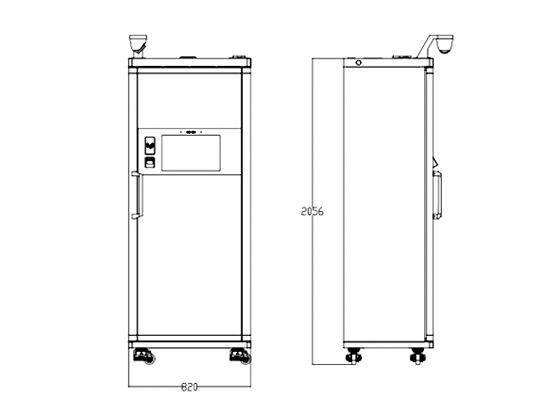

| size | 820*600*2030mm(L*W*H) | |
| Storage method | Hanging and stacking | |
| weight | 100kg | |
| color | customizable | |
| Material | Glass + aluminum alloy | |
| Operating temperature | -20℃~60℃ | |
| storage temperature | -30℃~70℃ | |
| environment humidity | 5%~95%RH, no condensation | |
