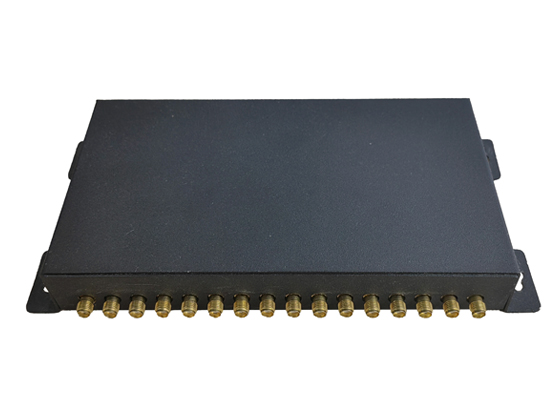

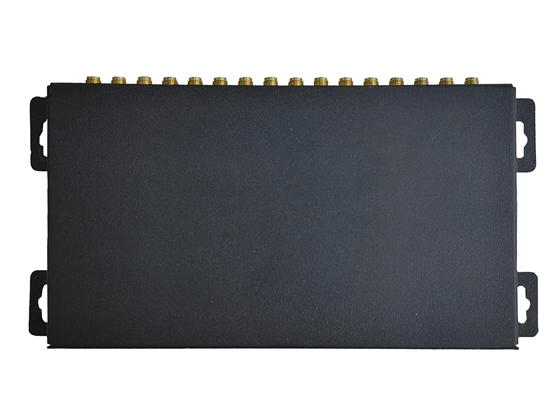

16-port RFID Fixed Reader
BRD-2216 is a high-performance UHF 16-port fixed RFID reader. It has the characteristics of long reading distance, fast speed, super multi-tag reading ability, strong anti-interference ability, high protection performance and convenient installation and use.
HomeProductsFixed RFID Readers
Overview Specification Applications Recommend

16-port RFID Fixed Reader

16-port RFID Fixed Reader

Impinj E710 platform;

Support ISO18000-6C protocol;

RJ-45 and RS-232;

Independent mold opening, all-aluminum die-casting, efficient heat dissipation;

Support RSSI, can perceive the signal strength;

Support antenna detection function;

Get Quote
Do you need to view the product specification?

You can click to view more about product information

Explore

Highlight
Specifications
  • Physical Parameters

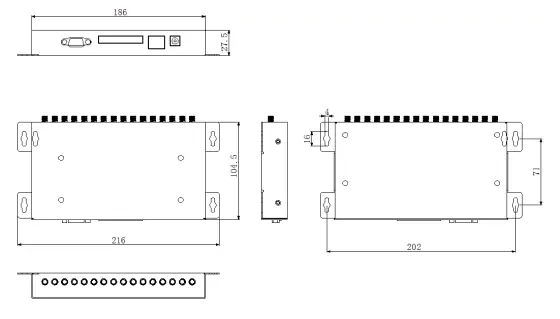

    Size 216mm×104.5mm×27.5mm
    Weight 0.39kg
    IP Class IP53
  • Main Function
    Protocol EPC Class 1 Gen 2 / ISO18000-6C

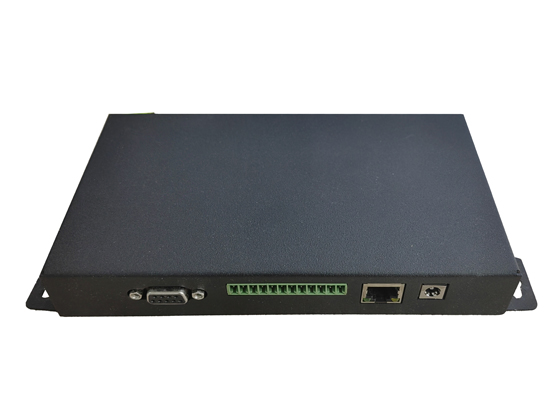

    Communication Interface RJ-45,RS-232
    Operating mode Fixed frequency/frequency hopping optional
    I/O interface GPO: 4 output ports (O1/O2/O3/O4), low level by default;
    GPIN: 2 input ports (IN1/IN2), high level by default, active low level;
    Function Support intensive reading and writing
    Support antenna detection function
    Support online upgrade
    Support tag data filtering
    Support antenna work instructions
    Support RSSI: Perceivable signal strength
  • Main Function
    Frequency CHN:920MHz～925MHz
    FCC:902MHz～928MHz
    ETSI:865MHz～868MHz
    RF output power (port) 1 dB
    Channel occupied bandwidth ＜200KHz
    Band stability ≤±10ppm
    Band stability ≤±10ppm
    Reading distance Reading distance: 0m ~ 20m (related to factors such as transmission power, antenna type, tag type and application environment)
    Write distance 0m～10m(related to factors such as transmit power, antenna type, tag type and application environment)
    Read speed >300times/second
    Network interface communication rate 10M/100M adaptive
  • Communication Interface
    RS232 interface Baud rate 115200bps (default)
    Ethernet interface 10M/100ME thernet interface
    RF interface SMA-Female
  • Power parameters
    Equipment power supply DC12V5A（60W）
    Working power consumption 25W(output power 33dBm)
  • working environment 
    Operating temperature -20 - +60°C
    Storage temperature -40 - +85°C
    Humidity 10%-95% RH non-condensing
